AirQualityWing issues with Particle Argon and Xenon

jaredwolff thanks for your reply!

I believe that is an artifact of Micropython. I’m using the AQW standalone for now (and will only add a single I2C slave device in the final “product”).

Right now it’s only the Argon plugged on top of the AQW.

I got the HPMA from Honeywell directly (well, Digikey). It’s working with a breakout board if I connect it directly to the Argon via a breadboard (with custom code)

I tried the code with just the Si7021 enabled and with just the HPMA115 enabled, but the result is the same (minus the error messages for these devices of course).

I understand that you cannot debug any other code but I don’t think it’s a software issue. Remember the long list of I2C devices that Circuitpython sees when the AQW is plugged in? So it turns out I can communicate with I2C devices when it’s just the Argon on a breadboard, but as soon as the Argon is plugged into the AQW, communication with any I2C device fails – not just the 2 on the AQW board, but also external I2C devices. It seems there is a short or a wrong connection somewhere. Possibly it’s related to the damaged CCS811?

I got the board from GroupGets (ORDER #GG-4596) on November 25th 2020 (so less than a year actually). I’m in Europe and just getting another AQW board is prohibitively expensive (I paid $60 with shipping and another $40 in import tax and customs fees).

Anything I can measure to isolate what is damaged?

Just to be 100% certain I tried it with a second Argon and another Xenon:

Serial monitor opened successfully:
Air Quality Wing for Particle & Feather
0000035248 [app] WARN: Error tvoc - no data
0000045247 [app] ERROR: hpma timeout
0000045248 [app] ERROR: Error hpma115
0000045249 [app] ERROR: Error sgp30
0000055246 [app] WARN: Error tvoc - no data

Give me some time. I’m traveling at the moment but I will try to do all that on the weekend. My scope is quite basic but it’s good enough for I2C traffic.

I do want to stress that this is the exact condition the board arrived in! The CCS811 never had its original casing. I only noticed that it should have one when I looked at the datasheet and photos of other CCS811.

jaredwolff alright, I just got around to looking at this.

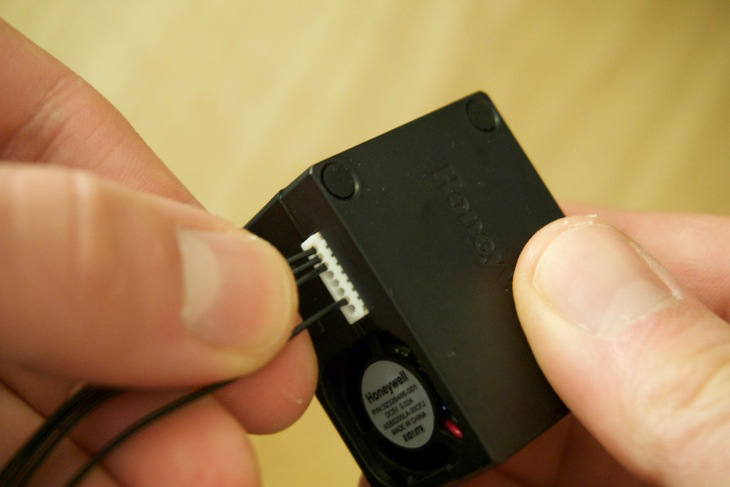

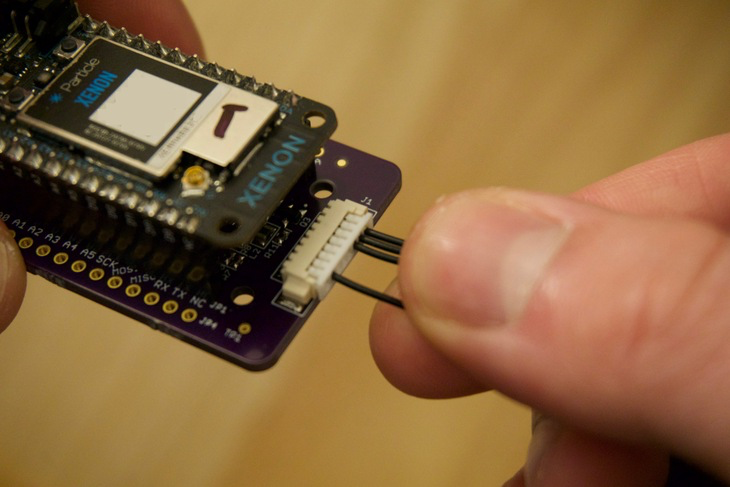

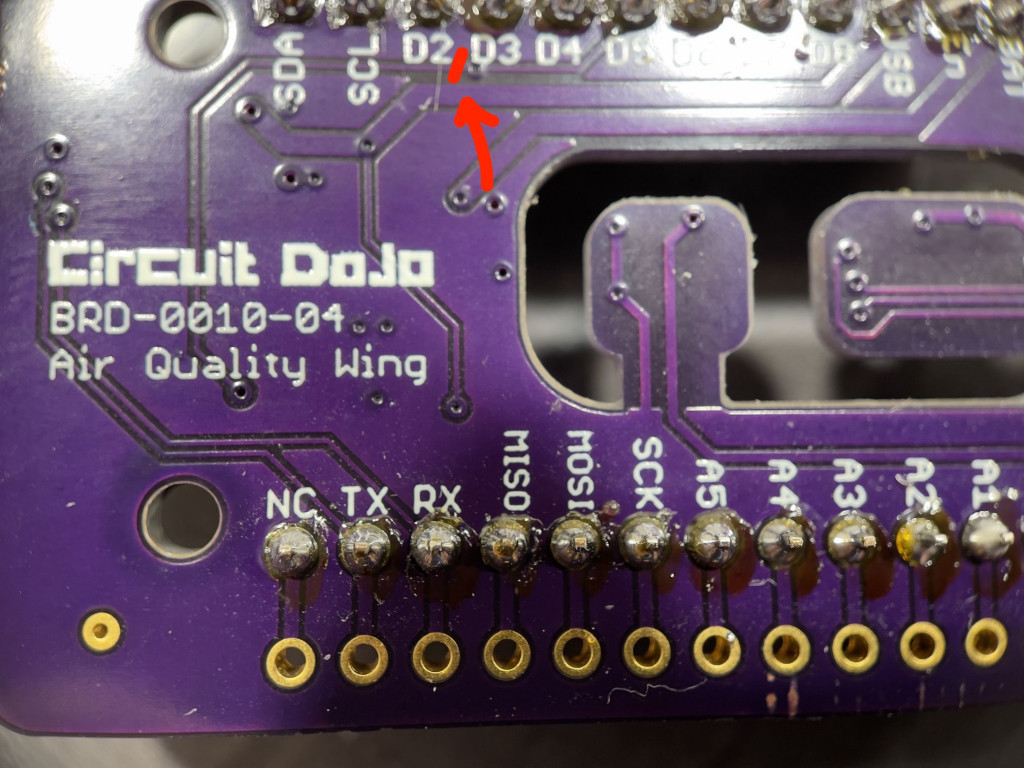

The trace was indeed not cut but there was a thin scratch between the D2 and D3 pads. I cut the trace right at this point. Your pictures of the HPMA115 wiring were also very helpful because I noticed my wiring was flipped. Oops. I corrected that.

This got me a little farther. The HPMA now turns on but the values reported (changed log level to INFO) are completely off:

0000140421 [app] INFO: {"pm25":1000,"pm10":1013,"temperature":128.87,"humidity":119.00}

Digging a little deeper and adding some debug statements, I noticed that all the values read from the HPMA and the Si7021 seem to be messed up (I’m not measuring next to that volcano in Iceland):

temp_code: 65535
rh_code: 65535
hum: 119.00% temp: 128.87°C
0000059013 [app] WARN: Error tvoc - no data
data+checksum: fc fc
data+checksum: 2df 2df
data+checksum: 2df 2df
rx_buf: 2003e4f0
0000063039 [app] INFO: {"pm25":1000,"pm10":1013,"temperature":128.87,"humidity":119.00}

Next, I will try to remove the CCS811 altogether. Merely disabling it in the code doesn’t change anything.

jaredwolff I did that actually before posting but it didn’t change anything.

rx_buf: 2003e4f0
0000045035 [app] INFO: {"pm25":1000,"pm10":1013}

It’s encouraging that at least the fan is spinning and data is being read.

So, just my luck, but the HPMA was brand new but defective. I RMA’d it with Honeywell.

However, I had a PMS5003 lying around which is very similar in design but has a slightly different pinout. Other than that, it also communicates over UART and needs 5V input for the fan. I changed the wiring to match the PMS5003, didn’t touch the code, and it works. The values match the ones reported by a Temtop M2000 station as well as the ones by the local AQI measurement station.

rx_buf: 66 77 0 28 0 7 0 9 0 9 0 7 0 9 0 9 0 0 0 0 0 0 0 0 0 0 0 0 151 8 1
0000082554 [app] INFO: {"pm25":9,"pm10":9}

rx_buf: 66 77 0 28 0 109 0 219 0 250 0 72 0 145 0 166 0 0 0 0 0 0 0 0 0 0 0 0 151 8 5
0000102570 [app] INFO: {"pm25":219,"pm10":250}

The second measurement is from directly next to my soldering station. Eww.

One down.

Next was the CCS811 which came off easily with the hot air soldering gun. I have a spare CCS811 here which I could desolder from its breakout board, but first I want to make sure the rest of the board is working.

The Si7021 is consistently reporting relative humidity of 119.00% and a temperature of 128.87°C. Which seemed odd until I looked at the code that is used for reading the data. The raw values reported by the sensor are just 65535 (0xFFFF) for both temperature and humidity.

And that was also the case for CCS811 before.

So I hooked up my crappy Aliexpress scope and while I’m no electrical engineer and I’m not great at reading the output, it looks to me as if SDA is just permanently stuck on HIGH.

So there is definitely more broken on that board than just the CCS811.

I would recommend if you do remove it, the CCS811 is very fragile when heated. Best to warm it from the bottom if possible.

Thanks! I will try that once I have the Si7021 working.

Hmm interesting. Without anything connected, can you measure the pull up resistors? If they’re shorted to 3.3V that would explain the issues a bit more. (Though would be a problem if they were 0 ohms!)

Without anything connected, I measure 20kΩ between both SDA/3.3V and SCL/3.3V. I measure 40kΩ between SDA and SCL (which makes sense).

To test the I2C bus, with nothing connected to the AQW and the CCS811 desoldered, I ran the following program:

#include <Wire.h> //include Wire.h library

void setup()
{
  Wire.begin(); // Wire communication begin
  Serial.begin(9600); // The baudrate of Serial monitor is set in 9600
  while (!Serial); // Waiting for Serial Monitor
  Serial.println("\nI2C Scanner");
}

void loop()
{
  byte error, address; //variable for error and I2C address
  int nDevices;

  Serial.println("Scanning...");

  nDevices = 0;
  for (address = 1; address < 127; address++ )
  {
    // The i2c_scanner uses the return value of
    // the Write.endTransmisstion to see if
    // a device did acknowledge to the address.
    Wire.beginTransmission(address);
    error = Wire.endTransmission();

    if (error == 0)
    {
      Serial.print("I2C device found at address 0x");
      if (address < 16)
        Serial.print("0");
      Serial.print(address, HEX);
      Serial.println("  !");
      nDevices++;
    }
    else if (error == 4)
    {
      Serial.print("Unknown error at address 0x");
      if (address < 16)
        Serial.print("0");
      Serial.println(address, HEX);
    }
  }
  if (nDevices == 0)
    Serial.println("No I2C devices found\n");
  else
    Serial.println("done\n");

  delay(5000); // wait 5 seconds for the next I2C scan
}

And the output is:

I2C Scanner
Scanning...
I2C device found at address 0x01  !
I2C device found at address 0x02  !
I2C device found at address 0x03  !
I2C device found at address 0x04  !
I2C device found at address 0x05  !
I2C device found at address 0x06  !
I2C device found at address 0x08  !
I2C device found at address 0x09  !
I2C device found at address 0x0A  !
I2C device found at address 0x0B  !
I2C device found at address 0x0C  !
I2C device found at address 0x0D  !
I2C device found at address 0x0E  !
I2C device found at address 0x10  !
I2C device found at address 0x11  !
I2C device found at address 0x12  !
I2C device found at address 0x13  !
I2C device found at address 0x14  !
I2C device found at address 0x15  !
I2C device found at address 0x16  !
I2C device found at address 0x24  !
I2C device found at address 0x25  !
I2C device found at address 0x26  !
I2C device found at address 0x28  !
I2C device found at address 0x29  !
I2C device found at address 0x2A  !
I2C device found at address 0x39  !
I2C device found at address 0x3A  !
I2C device found at address 0x49  !
I2C device found at address 0x4A  !
I2C device found at address 0x59  !
I2C device found at address 0x5A  !
I2C device found at address 0x68  !
I2C device found at address 0x69  !
I2C device found at address 0x6A  !
I2C device found at address 0x6C  !
I2C device found at address 0x7A  !
I2C device found at address 0x7C  !
done

This is the same issue I saw on CircuitPython with a huge list of I2C addresses.
